0.96 Inch OLED Display Module with 128x64 Resolution and SPI Interface for Graphic Applications

0.96 Inch OLED Display Module 128x64, OEL Graphic Display

Description

We provide a wide range of standard passive matrix OLED (PMOLED) / OLED dot matrix display and custom design Character OLED modules, Graphic OLED displays and OLED display panels. Mechanical structure includes Chip on Board (COB), Chip on Glass (COG), and TAB (Tape Automated Bonded) types. Customers can upgrade applications from STN LCD to OLED displays easily.The important advantages:

• Faster response time “At +25 ℃ 10 μsec.”
• Unlimited viewing angle “Up to 175 degree”
• Thin – No need of backlight, self emitting
• High Brightness
• High contrast ratio “Up to 10,000:1”
• Wide Operation Temperature “-40 ℃ ~ 80 ℃”
• Lower power consumption

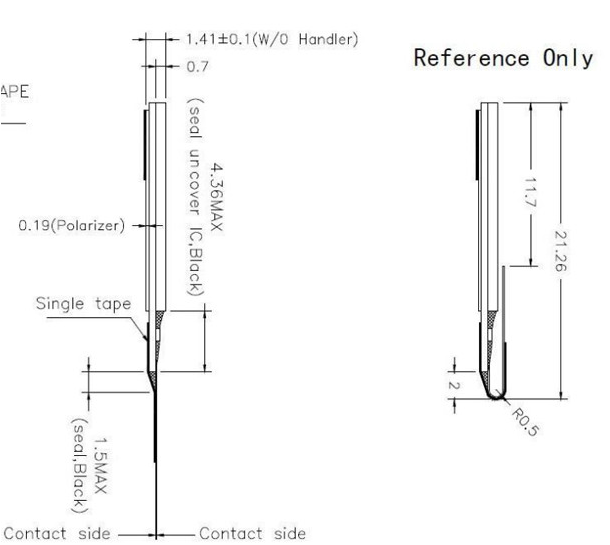

0.96 inch Thin OLED Display, OLED I2C Display Drawing

Basic parameters

Dimensions: The diagonal size is 0.96 inches, the display area is approximately 21.744mm × 11.204mm, the module size is usually around 26.7mm × 19.26mm, and the thickness is relatively thin, generally ranging from 1 to 2 millimeters.Resolution: It has 128 × 64 pixel points, with a high pixel density, capable of clearly displaying text and simple graphics.
Display colors: There are various options such as monochrome and dual-color. Common monochrome colors include white, blue, and yellow-green, and dual-color options like yellow / sky blue.
Driver chip: Usually uses SSD1306 chip, and some use other chips such as SSD1315.
Interface type: Supports multiple interfaces such as I2C, SPI, 6800, 8080, etc., facilitating connection with different microcontrollers.
Working voltage: Generally 3.3V - 5.5V, the specific voltage range may vary slightly for different brands and models.
Product features
Self-luminous: No need for a backlight module, each pixel point can independently emit light, with high contrast, black pixels can be completely turned off, and the theoretical contrast can reach infinity.
Fast response: The response time is usually in the microsecond range, capable of quickly displaying dynamic images, without ghosting phenomenon.
Wide viewing angle: The viewing angle can reach above 170 degrees, the image display effect remains basically unchanged from different angles.
Low power consumption: Pixel independent control, black areas do not consume power, the overall power consumption is lower than LCD, suitable for battery-powered devices.

Product application

Embedded systems: These are monitoring devices that often display sensor data such as temperature, humidity, and air pressure, and are also used in smart home control panels to show device status and control instructions, etc.
Wearable devices: Such as smart watches, fitness trackers, etc., can display time, steps, heart rate, notifications, etc. Their lightweight feature makes it easy to integrate them into the compact space of wearable devices.
DIY and Maker projects: When paired with development boards like Arduino and Raspberry Pi, they can be used to create robot status displays, simple game consoles, information boards, etc., meeting the creative needs of enthusiasts.
Industrial equipment: They can serve as display screens for small instruments and meters, such as portable testing tools, handheld oscilloscopes, etc., to display measurement data and operation menus.
Consumer electronics: Such as desktop weather display units, kitchen weighing devices, air quality detectors, etc., can clearly display relevant information and provide intuitive operation feedback to users.
